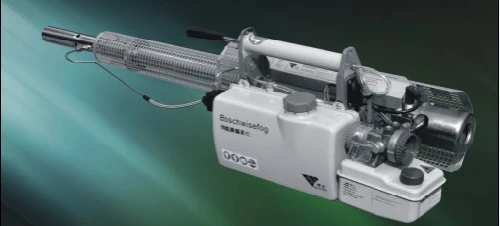

We have done it, to design a fogger for general but particularly for the indoor use with the main objective to develop a powerful thermal fog generator, manufactured in our high quality standard.
- The low noise of the pulse jet engine.
- Most light in weight with compact dimensions, it is easy of operation.
- The working performance is very reliable, it is easy of maintenance.
- Stainless steel protecting shield, ensure it is safe to operator
Fields of Application:
We designed this machine mainly used for small fields of urban environment. It is capable of dispensing oil based disinfectants, deodorizers, germicides and insecticides, and its compact size and ability to produce large volumes of fog make the AM-F01 ideal for use in most situations, such as :
greenhouses, warehouses, factories, food processing plants, parks, campgrounds, cattle-barns, swine/poultry houses, grain mills, restaurants, hotel complexes, golf courses, and much more. The AM-F01 is also used by Health Ministries throughout the world for controlling mosquitoes that transmit diseases like West Nile Virus, Encephalitis, Malaria, Dengue Fever, Yellow Fever and Chagas disease.Technical Specification:
|Weight, empty in kg, approx.||7.5|
|Dimensions in mm (L x W x H)||1330×270×315|
|Weight, empty in kg, approx. (shipping data)||11.5|
|Dimensions in mm (L x W x H),(shipping data)||1288×310×360|
|Solution tank capacity in l||5|
|Fuel tank capacity in l||1.5|
|Fuel consumption in l/h, approx.||1.5|
|Performance of combustion chamber in KW/HP||4/5.44|
|Maximum flow rate in l/h of||10|
|Flow rate with oil in l/h, approx||10|
|Efficient horizontal reach in closed rooms,(oil based formulations) approx. in m||15|
|Energy||2 ×1.5 V batteries|
|Pressure in the solution tank in bar, approx.||0.25|
|Pressure in the oil tank in bar, approx.||0.06|
